Brief Description:
8-bit Microcontrollers – MCU 32KB FL 4KBRM 16MIPS 12bit ADC CTMU
Datasheet:
PIC18F25K80-I/SS Datasheet (PDF)
Microchip Technology Automotive 8-Bit Microcontrollers
Microchip Technology Automotive 8-Bit Microcontrollers include MCUs with the PIC® and AVR® architecture. Capturing the best features of both architectures enables Microchip to offer plentiful solutions for every type of automotive system. From Human Machine Interface (HMI) applications based on touch technology to underhood applications requiring high-temperature robustness to simple watchdog-type applications requiring a small form factor, users can find extensive options that meet specific requirements.
One of the unique features of the PIC microcontroller is the core-independent peripheral (CIP) concept, which is a highly configurable hardware module. They were designed to reduce interrupt latency, lower power consumption, and increase system efficiency and safety while minimizing design time and effort.
Most of the Automotive AVRs offer support for capacitive touch sensing functionality through the Qtouch library in combination with the powerful core and rich peripheral set. Likewise, PIC microcontrollers support capacitive touch applications through peripherals such as the CVD and CTMU.
More and more automotive electronic systems are finding their way underhood, which drives the requirement for semiconductors that can withstand higher temperatures. Many of the PIC and AVR 8-bit MCUs are qualified for the AEC-Q100 Grade 0 (-40°C to +150°C) standard.
For applications that are required to communicate on the CAN bus, several 8-bit PIC and AVR microcontrollers offer an integrated CAN controller that simplifies the development of a networked solution.
More Discription:

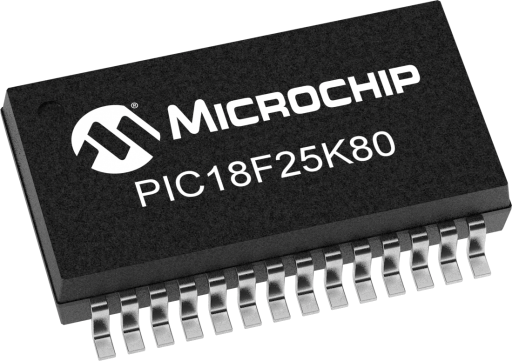

PIC18F25K80 is a high performance 8-bit MCU with Integrated ECAN™ featuring eXtreme Low Power consumption. New features in PIC18F25K80 include low sleep current for low power application, 1.8V to 5.5V operating voltage for automotive, building control, elevator control and industrial application, Timers/Enhanced Compare/Capture/PWMs for precision timing control, 12-bit ADC for advance analog interface and Charge Time Measurement Unit for easy capacitive touch user interface. The PIC18F25K80 family is ideal for applications requiring cost-effective, low-power CAN solutions with high performance and robust peripheral set in small package
Features:
- 20 nA Sleep mode (Watch Webinar)
- 300nA Watch Dog Timer operation in Sleep modes
- Integrated ECAN™ conforming to CAN 2.0B active specification
- Extreme Low Power Sleep mode ideal for battery applications
- Operating voltage 1.8V – 5.5V
- Charge Time Measurement Unit (CTMU) supports Touch sensing and advanced sensing applications
- 8 ch, 12-bit ADC
- 4 Capture / Compare / PWM modules and 1 Enhanced Capture / Compare / PWM modules
- 1 MSSP serial ports for SPI or I2C™ communication
- 2 Enhanced USART modules
- Two analog comparators
- Self programming Flash supports 10k erase/write cycles & 20 years retention
Parametrics:
- ADC Resolution Max b (bit):12
- Number of Comparators:2
- Data EEPROM (bytes):1024
- Data Signal Modulator (DSM):0
- Numerically Controlled Oscillator (NCO):0
- Operation Voltage Max.(V):5.5
- Operation Voltage Min.(V):1.8
- RAM B (byte):3648
- Program Memory Size (KB):32
- Low Power:Yes
- ADC Channels:8
- Pincount:28
- Stand alone PWM:0
- Zero Cross Detect:0
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer: | Microchip |
| Product Category: | 8-bit Microcontrollers – MCU |
| Core: | PIC18 |
| Program Memory Size: | 32 kB |
| Data RAM Size: | 3.6 kB |
| Package / Case: | SSOP-28 |
| Maximum Clock Frequency: | 64 MHz |
| ADC Resolution: | 12 bit |
| Number of I/Os: | 24 I/O |
| Supply Voltage – Min: | 1.8 V |
| Supply Voltage – Max: | 5.5 V |
| Mounting Style: | SMD/SMT |
| Data Bus Width: | 8 bit |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| Series: | PIC18(L)F2xK80 |
| Packaging: | Tube |
| Brand: | Microchip Technology |
| Data RAM Type: | EEPROM |
| Interface Type: | I2C, SPI, USART |
| Moisture Sensitive: | Yes |
| Number of ADC Channels: | 8 Channel |
| Number of Timers/Counters: | 5 Timer |
| Processor Series: | PIC18 |
| Product Type: | 8-bit Microcontrollers – MCU |
| Program Memory Type: | Flash |
| Factory Pack Quantity: | 47 |
| Subcategory: | Microcontrollers – MCU |
| Tradename: | PIC |
| Unit Weight: | 0.025045 oz |
